TensorFlow Learning

Posted on | Post modified: | | Visitors:

Overview

Install

Official Install Guidance

As for me, my environment is:

macOS Sierra 10.12.6
Python 3.6.3
pip3

The official command uses pip install --upgrade virtualenv. However, my MacBook Air doesn’t have pip and just can’t install pip using sudo easy_install pip. The error message is
Download error on https://pypi.python.org/simple/pip/: [SSL: TLSV1_ALERT_PROTOCOL_VERSION] tlsv1 alert protocol version (_ssl.c:590) -- Some packages may not be found!

There seems something wrong with openssl. But after updating openssl with homebrew, it still doesn’t work. Thankfully, I can install with pip3 instead.

So the full commands are as follows:

1
2
3
4
5
6
pip3 install --upgrade virtualenv
virtualenv --system-site-packages -p python3
cd tensorflow
easy_install -U pip3
source ./bin/activate
pip3 install --upgrade tensorflow

CS20

To learn TensorFlow, I’m following Stanford’s course CS20: TensorFlow for Deep Learning Research. So I’ve also installed TensorFlow 1.4.1 with the setup instruction.
There seems something wrong when importing tensorflow. The error message:
/usr/local/Cellar/python/3.6.3/Frameworks/Python.framework/Versions/3.6/lib/python3.6/importlib/_bootstrap.py:219: RuntimeWarning: compiletime version 3.5 of module 'tensorflow.python.framework.fast_tensor_util' does not match runtime version 3.6 return f(*args, **kwds)

The solution is found here. Download the binary resource and use the command pip install --ignore-installed --upgrade tensorflow-1.4.0-cp36-cp36m-macosx_10_12_x86_64.whl (may be different on different on different machines).

Activation and Deactivation

Activate the Virtualenv each time when using TensorFlow in a new shell.

1
2
cd targetDirectory
source ./bin/activate

Change the path to Virtualenv environment, invoke the activation command and then the prompt will transform to the following to indicate that TensorFlow environment is active:
(targetDirectory)$

When it is done, deactivate the environment by issuing the following command:
(targetDirectory)$ deactivate

Graphs and Sessions

Graphs

TensorFlow separates definition of computations from their execution.
Phase:

  1. assemble a graph
  2. use a session to execute operations in the graph

(this might change in the future with eager mode)

Tensor
A tensor is an n-dimensional array.
0-d tensor: scalar (number)
1-d tensor: vector
2-d tensor: matrix
and so on…

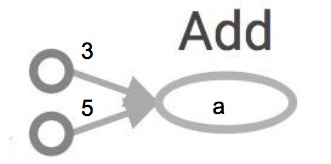

Data Flow Graphs

Nodes: operators, variables, and constants
Edges: tensors

Tensors are data.
TensorFlow = tensor + flow = data + flow

Session

Then how to get the value of a?
Create a session, assign it to variable sess so we can call it later.
Within the session, evaluate the graph to fetch the value of a.

Two ways:

1
2
3
sess = tf.Session()
# commands
sess.close()
1
2
with tf.Session() as sess:
    # commands

A session object encapsulates the environment in which Operation objects are executed, and Tensor objects are evaluated.
Session will also allocate memory to store the current values of variables.

Why graphs

  1. Save computation. Only run subgraphs that lead to the values you want to fetch
  2. Break computation into small, differential pieces to facilitate auto-differentiation
  3. Facilitate distributed computation, spread the work across multiple CPUs, GPUs, TPUs, or other devices
  4. Many common machine learning models are taught and visualized as directed graphs

TensorBoard

The computations you’ll use TensorFlow for - like training a massive deep neural network - can be complex and confusing. To make it easier to understand, debug, and optimize TensorFlow programs, we’ve included a suite of visualization tools called TensorBoard.

When a user perform certain operations in a TensorBoard-activated TensorFlow program, these operations are exported to an event log file. TensorBoard is able to convert these event files to visualizations that can give insight into a model’s graph and its runtime behavior. Learning to use TensorBoard early and often will make working with TensorFlow that much more enjoyable and productive.

To visualize the program with TensorBoard, we need to write log files of the program. To write event files, we first need to create a writer for those logs, using the code writer = tf.summary. FileWriter ([logdir], [graph])
[graph] is the graph of the program that we’re working on. Either call it using tf.get_default_graph(), which returns the default graph of the program, or through sess.graph, which returns the graph the session is handling. The latter requires that a session is created.
[logdir] is the folder where we want to store those log files.

Note: if running the code several times, there will be multiple event files in [logdir]. TF will show only the latest graph and display the warning of multiple event files. To get rid of the warning, just delete the event files that is useless.

1
2
3
4
5
6
7
8
9
10
11
import tensorflow as tf

a = tf.constant(2)
b = tf.constant(3)
x = tf.add(a, b)

writer = tf.summary.FileWriter('./graphs', tf.get_default_graph())
with tf.Session() as sess:
    # writer = tf.summary.FileWriter('./graphs', sess.graph)
    print(sess.run(x))
writer.close()
1
2
python3 programName.py
tensorboard --logdir="./graphs" --port 6006

Operations

Constants

1
2
# constant of 1d tensor (vector)
tf.constant(value, dtype=None, shape=None, name='Const', verify_shape=False)

a = tf.constant([2, 2], name='a')

Tensors filled with a specific value

1
2
# create a tensor of shape and all elements are zeros
tf.zeros(shape, dtype=tf.float32, name=None)

Similar to numpy.zeros
tf.zeros([2, 3], tf.int32) ==> [[0, 0, 0], [0, 0, 0]

1
2
# create a tensor of shape and type (unless type is specified) as the input_tensor but all elements are zeros
tf.zeros_like(input_tensor, dtype=None, name=None, optimize=True)

Similar to numpy.zeros_like
tf.zeros_like(input_tensor) # input_tensor = [[0, 1], [2, 3], [4, 5]] ==> [[0, 0], [0, 0], [0, 0]]

1
2
3
4
5
# create a tensor of shape and all elements are ones
tf.ones(shape, dtype=tf.float32, name=None)

# create a tensor of shape and type (unless type is specified) as the input_tensor but all elements are ones
tf.ones_like(input_tensor, dtype=None, name=None, optimize=True)

Similar to numpy.ones, numpy.ones_like

1
2
# create a tensor filled with a scalar value
tf.fill(dims, value, name=None)

Similar to numpy.full
tf.fill([2, 3], 8) ==> [[8, 8, 8], [8, 8, 8]]

Constants as sequences

1
2
3
# create a sequence of  num  evenly-spaced values are generated beginning at  start . If  num  > 1, the values in the sequence increase by (stop - start) / (num - 1), so that the last one is exactly  stop .
# comparable to but slightly different from numpy.linspace
tf.lin_space(start, stop, num, name=None)

tf.lin_space(10.0, 13.0, 4) ==> [10. 11. 12. 13.]

1
2
3
# create a sequence of numbers that begins at start and extends by increments of delta up to but not including limit
# slight different from range in Python
tf.range(start, limit=None, delta=1, dtype=None, name='range')

tf.range(3, 18, 3) ==> [3 6 9 12 15]
tf.range(5) ==> [0 1 2 3 4]

Randomly Generated Constants
tf.random_normal
tf.truncated_normal
tf.random_uniform
tf.random_shuffle
tf.random_crop
tf.multinomial
tf.random_gamma

tf.set_random_seed(seed)

Basic operations

Element-wise mathematical operations
Add, Sub, Mul, Div, Exp, Log, Greater, Less, Equal, …
Well, there’re 7 different div operations in TensorFlow, all doing more or less the same thing: tf.div(), tf. divide(), tf.truediv(), tf.floordiv(), tf.realdiv(), tf.truncatediv(), tf.floor_div()

Array operations
Concat, Slice, Split, Constant, Rank, Shape, Shuffle, …

Matrix operations
MatMul, MatrixInverse, MatrixDeterminant, …

Stateful operations
Variable, Assign, AssignAdd, …

Neural network building blocks
SoftMax, Sigmoid, ReLU, Convolution2D, MaxPool, …

Checkpointing operations
Save, Restore

Queue and synchronization operations
Enqueue, Dequeue, MutexAcquire, MutexRelease, …

Control flow operations
Merge, Switch, Enter, Leave, NextIteration

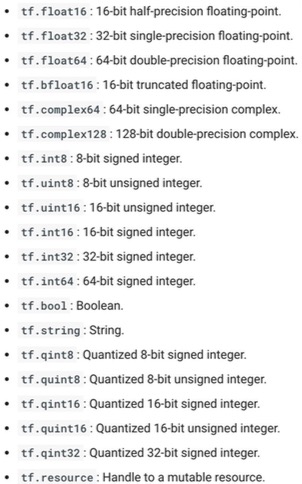

Data types

TensorFlow takes Python natives types: boolean, numeric(int, float), strings

scalars are treated like 0-d tensors
1-d arrays are treated like 1-d tensors
2-d arrays are treated like 2-d tensors

TensorFlow integrates seamlessly with NumPy
Can pass numpy types to TensorFlow ops

Use TF DType when possible:
Python native types: TensorFlow has to infer Python type
NumPy arrays: NumPy is not GPU compatible

Variable

Constants are stored in the graph definition. This makes loading graphs expensive when constants are big.
Therefore, only use constants for primitive types. Use variables or readers for more data that requires more memory.

Creating variables

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
tf.get_variable(
    name,
    shape = None,
    dtype = None,
    initializer = None,
    regularizer = None,
    trainable = True,
    collections = None,
    caching_device = None,
    partitioner = None,
    validate_shape = True,
    use_resource = None,
    custom_getter = None,
    constraint = None
)

With tf.get_variable, we can provide variable’s internal name, shape, type, and initializer to give the variable its initial value.

The old way to create a variable is simply call tf.Variable(<initial-value>, name=<optional-name>).(Note that it’s written tf.constant with lowercase ‘c’ but tf.Variable with uppercase ‘V’. It’s because tf.constant is an op, while tf.Variable is a class with multiple ops.) However, this old way is discouraged and TensorFlow recommends that we use the wrapper tf.get_variable, which allows for easy variable sharing.

Some initializer
tf.zeros_initializer()
tf.ones_initializer()
tf.random_normal_initializer()
tf.random_uniform_initializer()

Initialization

We have to initialize a variable before using it. (If you try to evaluate the variables before initializing them you’ll run into FailedPreconditionError: Attempting to use uninitialized value.)

The easiest way is initializing all variables at once:

1
2
with tf.Session() as sess:
    sess.run(tf.global_variables_initializer())

Initialize only a subset of variables:

1
2
with tf.Session() as sess:
    sess.run(tf.variables_initializer([a, b]))

Initialize a single variable:

1
2
with tf.Session() as sess:
    sess.run(W.initializer)

Assignment

Eval: get a variable’s value.
print(W.eval()) # Similar to print(sess.run(W))

1
2
3
4
5
W = tf.Variable(10)
W.assign(100)
with tf.Session() as sess:
    sess.run(W.initializer)
    print(W.eval())   # >> 10

Why W is 10 but not 100? In fact, W.assign(100) creates an assign op. That op needs to be executed in a session to take effect.

1
2
3
4
5
W = tf.Variable(10)
assign_op = W.assign(100)
with tf.Session() as sess:
    sess.run(assign_op)
    print(W.eval()) # >> 100

Note that we don’t have to initialize W in this case, because assign() does it for us. In fact, the initializer op is an assign op that assigns the variable’s initial value to the variable itself.

For simple incrementing and decrementing of variables, TensorFlow includes the tf.Variable.assign_add() and tf.Variable.assign_sub() methods. Unlike tf.Variable.assign(), tf.Variable.assign_add() and tf.Variable.assign_sub() don’t initialize your variables for you because these ops depend on the initial values of the variable.

Each session maintains its own copy of variables.

Control Dependencies

Sometimes, we have two or more independent ops and we’d like to specify which ops should be run first. In this case, we use tf.Graph.control_dependencies([control_inputs]).

1
2
3
4
5
6
# your graph g have 5 ops: a, b, c, d, e
g = tf.get_default_graph()
with g.control_dependencies([a, b, c]):
    # 'd' and 'e' will only run after 'a', 'b', and 'c' have executed.
    d = ...
    e = ...

Placeholders

We can assemble the graphs first without knowing the values needed for computation.
(Just think about defining the function of x,y without knowing the values of x,y. E.g.,
With the graph assembled, we, or our clients, can later supply their own data when they need to execute the computation.
To define a place holder:
tf.placeholder(dtype, shape=None, name=None)

We can feed as many data points to the placeholder as we want by iterating through the data set and feed in the value one at a time.

1
2
3
with tf.Session() as sess:
    for a_value in list_of_a_values:
        print(sess.run(c, {a: a_value}))

We can feed_dict any feedable tensor. Placeholder is just a way to indicate that something must be fed. Use tf.Graph.is_feedable(tensor) to check if a tensor is feedable or not.
feed_dict can be extremely useful to test models. When you have a large graph and just want to test out certain parts, you can provide dummy values so TensorFlow won’t waste time doing unnecessary computations.

Placeholder and tf.data

Pros and Cons of placeholder:
Pro: put the data processing outside TensorFlow, making it easy to do in Python
Cons: users often end up processing their data in a single thread and creating data bottleneck that slows execution down

tf.data

tf.data.Dataset.from_tensor_slices((features, labels))
tf.data.Dataset.from_generator(gen, output_types, output_shapes

For prototyping, feed dict can be faster and easier to write(pythonic)
tf.data is tricky to use when you have complicated preprocessing or multiple data sources
NLP data is normally just a sequence of integers. In this case, transferring the data over to GPU is pretty quick, so the speedup of tf.data isn’t that large

Optimizer

How does TensorFlow know what variables to update?

1
2
optimizer = tf.train.GradientDescentOptimizer(learning_rate=0.01).minimizer(loss)
_, l = sess.run([optimizer, loss], feed_dict={X:x, Y:y})

By default, the optimizer trains all the trainable variables its objective function depends on. If there are variables that you do not want to train, you can set the keyword trainable=False when declaring a variable.

Solution for LAZY LOADING

  1. Separate definition of ops from computing/running ops
  2. Use Python property to ensure function is also loaded once the first time it is called

Linear and Logistic Regression

Linear Regression

Given World Development Indicators dataset, X is birth rate, Y is life expectancy. Find a linear relationship between X and Y to predict Y from X.

Phase 1: Assemble the graph

  1. Read in data
  2. Create placeholders for inputs and labels
  3. Create weight and bias
  4. Inference Y_predicted = w * X + b
  5. Specify loss function
  6. Create optimizer

Phase 2: Train the model

  1. Initialize variables
  2. Run optimizer

Write log files using a FileWriter

See it on TensorBoard

Huber loss
One way to deal with outliers is to use Huber loss.
If the difference between the predicted value and the real value is small, square it
If it’s large, take its absolute value

1
2
3
4
5
def huber_loss(labels, predictions, delta=14.0):
    residual = tf.abs(labels - predictions)
    def f1(): return 0.5 * tf.square(residual)
    def f2(): return delta * residual - 0.5 * tf.square(delta)
    return tf.cond(residual < delta, f1, f2)

Logistic Regression

X: image of a handwritten digit
Y: the digit value
Recognize the digit in the image

Phase 1: Assemble the graph

  1. Read in data
  2. Create datasets and iterator
  3. Create weights and biases
  4. Build model to predict Y
  5. Specify loss function
  6. Create optimizer

Phase 2: Train the model

  1. Initialize variables
  2. Run optimizer op
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
""" Starter code for simple logistic regression model for MNIST
with tf.data module
MNIST dataset: yann.lecun.com/exdb/mnist/
Created by Chip Huyen (chiphuyen@cs.stanford.edu)
CS20: "TensorFlow for Deep Learning Research"
cs20.stanford.edu
Lecture 03
"""
import os
os.environ['TF_CPP_MIN_LOG_LEVEL']='2'

import numpy as np
import tensorflow as tf
import time

import utils

# Define paramaters for the model
learning_rate = 0.01
batch_size = 128
n_epochs = 30
n_train = 60000
n_test = 10000

# Step 1: Read in data
mnist_folder = 'data/mnist'
utils.download_mnist(mnist_folder)
train, val, test = utils.read_mnist(mnist_folder, flatten=True)

# Step 2: Create datasets and iterator
# create training Dataset and batch it
train_data = tf.data.Dataset.from_tensor_slices(train)
train_data = train_data.shuffle(10000) # if you want to shuffle your data
train_data = train_data.batch(batch_size)

# create testing Dataset and batch it
test_data = tf.data.Dataset.from_tensor_slices(test)
test_data = test_data.batch(batch_size)


# create one iterator and initialize it with different datasets
iterator = tf.data.Iterator.from_structure(train_data.output_types,
                                           train_data.output_shapes)
img, label = iterator.get_next()

train_init = iterator.make_initializer(train_data)	# initializer for train_data
test_init = iterator.make_initializer(test_data)	# initializer for train_data

# Step 3: create weights and bias
# w is initialized to random variables with mean of 0, stddev of 0.01
# b is initialized to 0
# shape of w depends on the dimension of X and Y so that Y = tf.matmul(X, w)
# shape of b depends on Y

w = tf.get_variable('weight', shape=(img.shape[1], label.shape[1]), initializer = tf.random_normal_initializer(mean=0.0, stddev=0.01))
b = tf.get_variable('bias', shape=(1, label.shape[1]), initializer = tf.zeros_initializer())


# Step 4: build model
# the model that returns the logits.
# this logits will be later passed through softmax layer
logits = tf.matmul(img, w) + b


# Step 5: define loss function
# use cross entropy of softmax of logits as the loss function
entropy = tf.nn.softmax_cross_entropy_with_logits(labels=label, logits=logits)
loss = tf.reduce_mean(entropy)


# Step 6: define optimizer
# using Adamn Optimizer with pre-defined learning rate to minimize loss
optimizer = tf.train.AdamOptimizer(learning_rate=learning_rate).minimize(loss)


# Step 7: calculate accuracy with test set
preds = tf.nn.softmax(logits)
correct_preds = tf.equal(tf.argmax(preds, 1), tf.argmax(label, 1))
accuracy = tf.reduce_sum(tf.cast(correct_preds, tf.float32))

writer = tf.summary.FileWriter('./graphs/logreg', tf.get_default_graph())
with tf.Session() as sess:

    start_time = time.time()
    sess.run(tf.global_variables_initializer())

    # train the model n_epochs times
    for i in range(n_epochs):
        sess.run(train_init)	# drawing samples from train_data
        total_loss = 0
        n_batches = 0
        try:
            while True:
                _, l = sess.run([optimizer, loss])
                total_loss += l
                n_batches += 1
        except tf.errors.OutOfRangeError:
            pass
        print('Average loss epoch {0}: {1}'.format(i, total_loss/n_batches))
    print('Total time: {0} seconds'.format(time.time() - start_time))

    # test the model
    sess.run(test_init)			# drawing samples from test_data
    total_correct_preds = 0
    try:
        while True:
            accuracy_batch = sess.run(accuracy)
            total_correct_preds += accuracy_batch
    except tf.errors.OutOfRangeError:
        pass

    print('Accuracy {0}'.format(total_correct_preds/n_test))
writer.close()

Eager execution

Pros and Cons of Graph:

PRO:

Optimizable
· automatic buffer reuse
· constant folding
· inter-op parallelism
· automatic trade-off between compute and memory

Deployable
· the Graph is an intermediate representation for models

Rewritable
· experiment with automatic device placement or quantization

CON:

Difficult to debug
· errors are reported long after graph construction
· execution cannot by debugged with pdb or print statements

Un-Pythonic
· writing a TensorFlow program is an exercise in metaprogramming
· control flow(e.g., tf.while_loop) differs from Python
· can’t easily mix graph construction with custom data structures

A NumPy-like library for numerical computation with support for GPU acceleration and automatic differentiation, and a flexible platform for machine learning research and experimentation.

1
2
3
import tensorflow as tf
import tensorflow.contrib.eager as tfe
tfe.enable_eager_execution()

Key advantages of eager execution

  • Compatible with Python debugging tools
    • pdb.set_trace() to heart content
  • Provides immediate error reporting
  • Permits use of Python data structures
    • e.g., for structured input
  • Enables easy, Pythonic control flow
    • if statements, for loops, recursion

Since TensorFlow 2.0 is coming (a preview version of TensorFlow 2.0 later this year) and eager execution is a central feature of 2.0. I’ll update more after the release of TensorFlow 2.0. Looking forward to it.
